ABOUT BLIND RIVET:
- BLIND RIVETS ARE NAMED SO BECAUSE THEY CAN BE INSTALLED WITHOUT ACCESS TO THE BACK SIDE OF THE ITEM BEING RIVETED. THEY ARE COMPOSED OF THE RIVET(GREEN) AND AN INTEGRATED MANDREL(ORANGE)
- BLIND RIVETS ARE INSTALLED IN A TIGHT HOLE THAT PASSES THROUGH THE MATERIALS BEING RIVETED(STEP 1& 2). A RIVETER IS USED TO PULL THE MANDREL BACK WHILE HOLDING THE RIVET IN PLACE(STEP 3). AS THE MANDREL IS PULLED BACK IT DEFORMS THE RIVET PUSHING THE SIDES OUTWARD UNTIL THE MANDREL SNAPS(STEP 4). THIS EXPANDED SIZE FORMS THE BACK SIDE OF THE RIVET HOLDING THE MATERIALS TOGETHER.
|
|
|
|
|
|

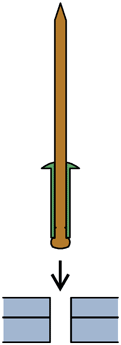

Step 1 |
Step 2 |

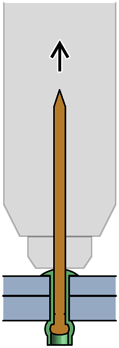

Step 3 |
Step 4 |
